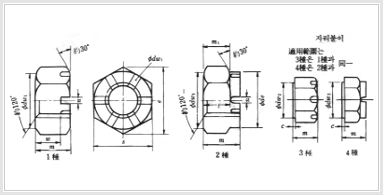

홈붙이 육각너트 HOME > 제품소개 > 너트 > 홈붙이 육각너트



▣ KS B 1015-90 JIS B 1170-1987 Unit : mm
  나사의 호칭 고 형 저 형 S e
(약)
¢dw2
(약)
¢de
(약)
n C ¢dw2
(최소)
홈의
참 고
분할핀치수
보통나사 가는나사 m w m1
(약)
m w m1
(약)








M4 x 0.7 - 5 3.2 - - - - 7 8.1 6.8 - 1.2 - - 6 1 x 12
(M4.5) - 6 4 - - - - 8 9.2 7.8 - 1.2 - - 6 1 x 12
M5 x 0.8 - 6 4 - - - - 8 9.2 7.8 - 1.4 0.4 7.2 6 1.2 x 12
M6 - 7.5 5 - - - - 10 11.5 9.8 - 2 0.4 9 6 1.6 x 16
(M7) - 8 5.5 - - - - 11 12.7 10.8 - 2 0.4 10 6 1.6 x 16
M8 M8 x 1 9.5 6.5 - - - - 13 15 12.5 - 2.5 0.4 11.7 6 2 x 18
M10 M10 x 1.25 12 8 - 8 4.5 - 17 19.6 16.5 - 2.8 0.4 15.8 6 2.5 x 2.5
M12 M12 x 1.25 15 10 10 10 6 - 19 21.9 18 17 3.5 0.6 17.6 6 3.2 x 25
(M14) (M14 x 1.5) 16 11 11 11 7 7 22 25.4 21 19 3.5 0.6 20.4 6 3.2 x 28
M16 M16 x 1.5 19 13 13 13 8 8 24 27.7 23 22 4.5 0.6 22.3 6 4 x 32
(M18) (M18 x 1.5) 21 15 15 13 8 8 27 31.2 26 25 4.5 0.6 25.6 6 4 x 36
M20 M20 x 1.5 22 16 16 13 8 8 30 34.6 29 28 4.5 0.6 28.5 6 4 x 40
(M22) (M22 x 1.5) 26 18 18 13 8 8 32 37 31 30 5.5 0.6 30.4 6 5 x 40
M24 M24 x 2 27 19 19 14 9 9 36 41.6 34 34 5.5 0.6 34.2 6 5 x 45
(M27) (M27 x 2) 30 22 22 16 10 10 41 47.3 39 38 5.5 - - 6 5 x 50
M30 M30 x 2 33 24 24 18 11 11 46 53.1 44 42 7 - - 6 6.3 x 56
(M33) (M33 x 2) 35 26 26 20 13 13 50 57.7 48 46 7 - - 6 6.3 x 63
M36 M36 x 3 38 29 29 21 14 14 55 63.5 53 50 7 - - 6 6.3 x 71
(M39) (M39 x 3) 40 31 31 23 15 15 60 69.3 57 55 7 - - 6 6.3 x 71
M42 - 46 31 34 25 16 16 65 75 62 58 9 - - 8 8 x 71
(M45) - 48 36 36 27 18 18 70 80.8 67 62 9 - - 8 8 x 80
M48 - 50 38 38 29 20 20 75 86.5 72 65 9 - - 8 8 x 80
(M52) - 54 42 42 31 21 21 80 92.4 77 70 9 - - 8 8 x 90
M56 - 57 45 45 34 23 23 85 98.1 82 75 9 - - 8 8 x 90
(M60) - 63 48 48 36 23 23 90 104 87 80 11 - - 8 10 x 100
M64 - 66 51 51 38 25 25 95 110 92 85 11 - - 8 10 x 100
(M68) - 69 54 54 40 27 27 100 115 97 90 11 - - 8 10 x 112
- M72 x 6 73 58 58 42 28 28 105 121 102 95 11 - - 10 10 x 125
- (M76 x 6) 76 61 61 46 32 32 110 127 107 100 11 - - 10 10 x 125
- M80 x 6 79 64 64 48 34 34 115 133 112 105 11 - - 10 10 x 140
- (M85 x 6) 88 68 68 50 34 34 120 139 116 110 14 - - 10 13 x 140
- M90 x 6 92 72 72 54 38 38 130 150 126 120 14 - - 10 13 x 140
- (M95 x 6) 96 76 76 57 41 41 135 156 131 125 14 - - 10 13 x 160
- M100 x 6 100 80 80 60 44 44 145 167 141 135 14 - - 10 13 x 160






M8 M8 x 1 9.5 6.5 - 8 4.5 - 12 13.9 11.5 - 2.5 0.4 10.8 6 2 x 18
M10 M10 x 1.25 12 8 - 8 4.5 - 14 16.2 13.5 - 2.8 0.4 12.6 6 2.5 x 20
M12 M12 x 1.25 15 10 10 10 6 - 17 19.6 16.5 16 3.5 0.6 15.8 6 3.2 x 25
(M14) (M14 x 1.5) 16 11 11 11 7 7 19 21.9 18 17 3.5 0.6 17.6 6 3.2 x 25
M16 M16 x 1.5 19 13 13 13 8 8 22 25.4 21 19 4.5 0.6 20.4 6 4 x 28
(M18) (M18 x 1.5) 21 15 15 13 8 8 24 27.7 23 22 4.5 0.6 22.3 6 4 x 32
M20 M20 x 1.5 22 16 16 13 8 8 27 31.2 26 25 4.5 0.6 25.6 6 4 x 36
(M22) (M22 x 1.5) 26 18 18 13 8 8 30 34.6 29 28 5.5 0.6 28.5 6 5 x 40
M24 M24 x 2 27 19 19 14 9 9 32 37 31 30 5.5 0.6 30.4 6 5 x 45
